19-inch Server Cabinet Rack with UL Certification

JF Series

Well-known 19 inchserver & cabinet racks manufacturers in Taiwan.

Server Rack, 19" Cabinet Rack,Server cabinet,

Key Specifications/Special Features:

Specifications:
- Standard 19-inch rack
- Must follow ANSI/EIA RS-310-C, D, E, F criterions to manufacture
- UL and CE-approved, and MIL-STD-167 tested
Surface and structure:
- Surface:
  - External width: 600mm
  - Height : 15~42U
  - Depth: 900mm
  - 1U for 44.45mm
- Structure:
  - Must follow ANSI/EIARS-310-C, D, E, F criterions to manufacture
  - UL and CE-approved,
  - and MIL-STD-167 tested
  - Main aluminum vertical rails uses squeeze aluminum pillars; an arc type appearance; material: AL6063T5
  - Flexible aluminum vertical rails can be set at the rack's front and back to meet the terminal wire's needs (it should have at least
  - three grooves)
  - User can add the cable fixtures accordingly
  - Rack's external depth is 900mm, and its internal
  - depth must reach 750mm
  - 6-way universal socket strips (1 set) with switch
  - 50 sets of catch nuts and panel screws are the standard outfit (you may add copper rails for your rack)
  - Flexible aluminum vertical rail's apertures must be able to install the M5 or M6
  - catch nuts, and aperture-to-aperture's distance must follow
  - EIA-Rs-310C criterions (size cannot be smaller than 9.2 x 9.2mm)
  - Flexible aluminum vertical rail's
  - thickness must higher than 2mm
  - Removable aluminum vertical rails can be adjusted forwards or backwards
  - Powder coated to protect against rust, oxidization, scratches, lacquer peeling, strong acid and alkali erosion

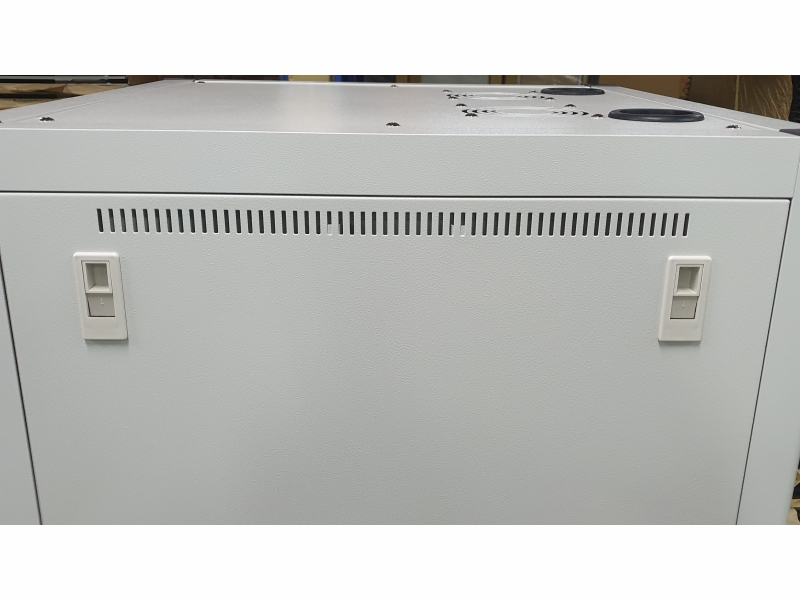

  - Rack's side panel can be easily assembled and disassembled from the outside without using any tools

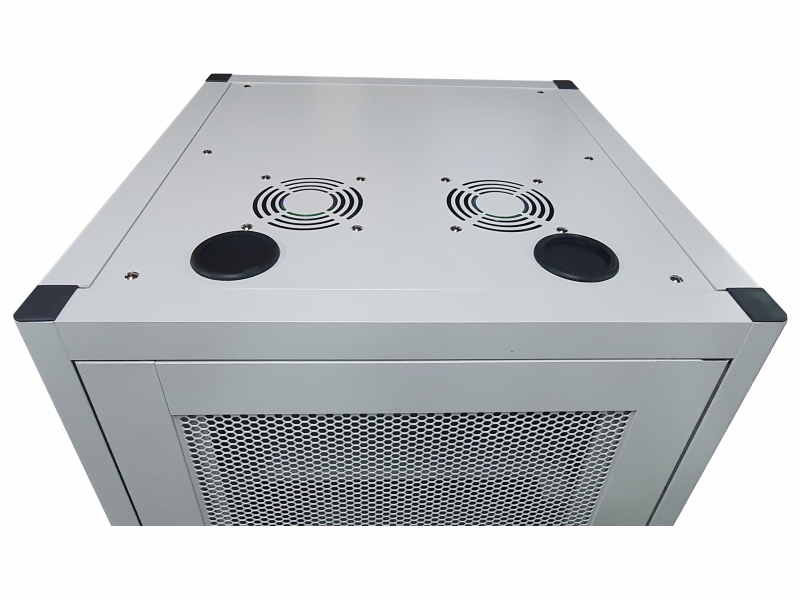

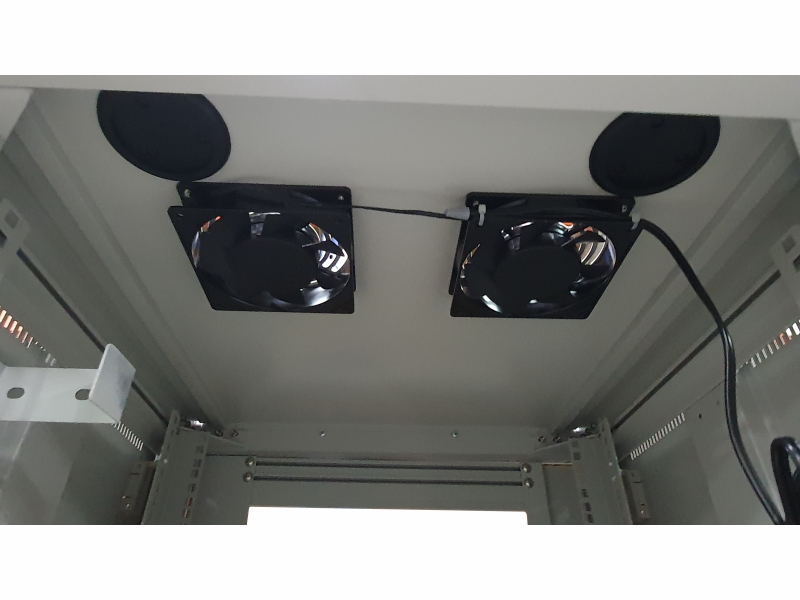

  - 2 sets of UL and CE-approved cooling fans as standard outfit
  - Fan size: 120 x 25mm (increasing the number of fans is optional)
  - Screw-less appearance for a smooth and clean look

Specification:

Order Code	Capacity(U)	Width(mm)	Depth(mm)
JF-42-900	42U	600	900
JF-42-1000		600	1000
JF-42-1100		600	1100
JF-41-615	41U	600	615
JF-41-750		600	750
JF-41-900		600	900
JF-41-1000		600	1000
JF-41-1100		600	1100
JF-35-615	35U	600	615
JF-35-750		600	750
JF-35-900		600	900
JF-30-615	30U	600	615
JF-30-750		600	750
JF-30-900		600	900
JF-25-615	25U	600	615
JF-25-750		600	750
JF-25-900		600	900
JF-20-615	20U	600	615
JF-20-750		600	750
JF-20-900		600	900
JF-15-615	15U	600	615
JF-15-750		600	750
JF-15-900		600	900

Images:

19-inch Server Cabinet Rack with UL Certification
